PMDC MINI. GEARED
MOTOR |
|
|
|
|
|
|
|
|
|
|
|
|
|

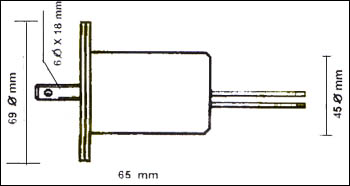

ROUND SHAPE PMDC GEARED MOTOR |
|
|
|
MODEL
: PMDCG - 45
|
|
|
 |
Specification : |
|
|
|
D.C. Motor |
12V DC, imported or local make. |
|
Gear Box |
metallic gears & pinions. |
|
Output Speed |
(1) 10 RPM (2) 40 RPM
|
|
Shaft Size |
6mm dia. x 18mm length.
|
|
Torque |
40 RPM - 2 kg-cm |
|
|
10 RPM - 5 kg-cm |
|
|
|
 |
|
|
|

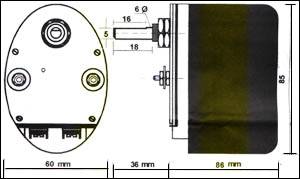

OVAL SHAPE PMDC GEARED MOTOR |
|
|
|
|
Specification : |
|
|
|
|
Voltage |
12V DC |
|
Current |
1A |
|
Output Speed |
55 RPM |
|
Torque |
7 Kg-cm |
|
|
|
|
|
|
|
|
|
|
|
|
In view of the 'VISHAL' policy of continuous development & improvement the information in
this leaflet is subject to change without notice. |
|
|
|
|
|
|
|
|
|
|
|
|
|
